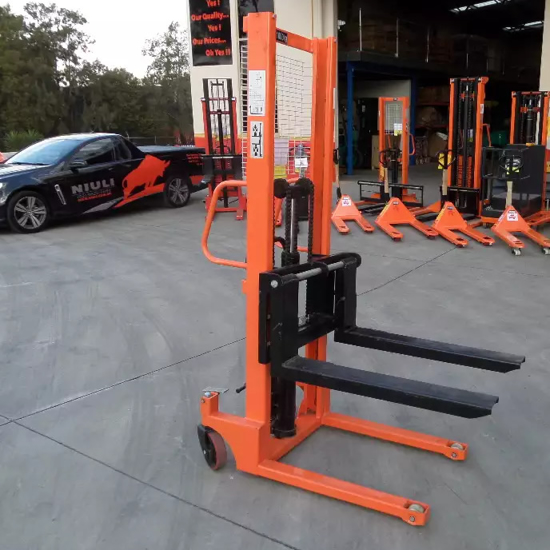

Manual Narrow Pallet Stacker 1Ton 1.6m

This manual narrow pallet stacker is Suitable for lifting open pallets, plastic pallets, safes, equipment, boxes, machinery, etc. It has Extra heavy duty steel frame, chain and ram.

Part No: EW-PS-MN1T

Shipping Charges *

$1,590.00 excl GST

Manual Narrow Pallet Stacker 1Ton 1.6m

This manual narrow pallet stacker is Suitable for lifting open pallets, plastic pallets, safes, equipment, boxes, machinery, etc. It has Extra heavy duty steel frame, chain and ram.

Description:

Manual push, pull , lift and drop
Extra heavy duty steel frame, chain and ram
Suitable for all heavy and light loads
Suitable for lifting open pallets, plastic pallets, safes, equipment, boxes, machinery, etc
Economic and mobile work aid
Hand or foot pedal pump up
Foot operated brake system for extra safety

Specification:

Capacity: 1000kg, Lift Height: 1600mm
Single fork length 1150mm, width 150mm, thickness 65mm
Min-Max Fork Height: 80mm-1600mm
Adjustable Fork Width: 20mm x 850mm
Clearance between forks: 20mm - 480mm
Inside leg width 530mm - outside Leg width 690mm
Wheels: front - 70x70mm , rear - 180x50mm
Overall dimensions 167(L) x 78(W) x 204(H) cm - weight 235kg
Shipping dimensions - Pallet - 170 x 120 x 220 cm - weight 277kg
