Crane Drum Rotator Chain 400kg

Crane Drum Rotator Chain 400kg

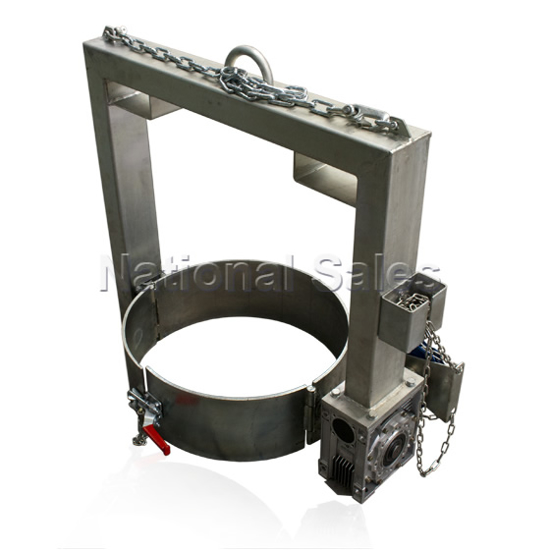

The EW-DBR40C Drum Rotator is designed to lift and rotate a 205 litre steel drum 360° by overhead crane or forklift. Rotation of the drum is controlled throughout the operation by the chain driven gearbox which locks the drum in position when the operator stops pulling the chain, preventing dangerous and uncontrolled movements.

Features:
• Empties a standard 205 litre drums with minimal effort
• For use with either overhead crane of forklift
• Suitable for drum rotation up to 3m above ground
• Rotation carried out via a hand chain
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release during tipping cycle
• Large worm drive gearbox provides automatic braking
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish

Specifications:
Model : EW-DBR40C
Working Load Limit (kg) : 400
Rotation : 360deg
Rotation Shaft CL to Lifting Eye : 810mm
Fork Pocket Size (mm) : 160 x 65mm
Fork Pocket Centres (mm) : x 615
Unit Weight (kg) : 72

Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg
